Breakfast corn flakes remain one of the most recognizable ready-to-eat cereals worldwide. Despite their simple appearance, modern industrial production involves precise engineering, chemistry, and thermodynamics. This article details each critical step from incoming grain to finished flake, focusing on equipment, parameters, quality control, and common failure modes.
1. Raw Material Reception and Cleaning
The process begins with dent corn (Zea mays indentata), not sweet corn. Dent corn provides high starch content (70–75%), moderate protein (8–10%), and low sugar (2–4%). Upon delivery, sampling checks:
- Moisture (ideal 14–15%)
- Broken kernels (≤3%)
- Foreign matter (≤1.5%)
- Mycotoxins (aflatoxin <20 ppb)
Cleaning uses a triple-deck screener (vibrating with 12, 8, and 5 mm meshes), a destoner (specific gravity separation), and a magnetic separator (ferrous metal). Poor cleaning causes off-flavors, equipment wear, and microbial risks.
2. Tempering (Moisture Adjustment)
Cleaned corn is transferred to tempering bins (50–100 metric ton capacity). Water is added in controlled amounts (2–4% by weight) to raise moisture from ~14% to 18–20%. Tempering lasts 30–120 minutes at 25–30°C. This allows water to penetrate the endosperm evenly. Without proper tempering, subsequent cooking yields “white eyes” – uncooked starch centers that remain hard after flaking.
3. Cooking (First Critical Control Point)
Tempered corn enters a continuous rotary pressure cooker (also called a flaking cooker). Key parameters:
- Pressure: 2.5–4.5 bar (gauge)
- Temperature: 120–140°C
- Residence time: 45–90 minutes
- Rotation speed: 3–8 rpm
During cooking, three transformations occur:
- Starch gelatinization: Water and heat break hydrogen bonds in starch granules, turning them amorphous. Gelatinization degree must reach 85–95% for proper flaking.
- Protein denaturation: Zein proteins coagulate, forming a matrix that traps gelatinized starch.
- Flavor development: Trace Maillard reactions begin, but are minimal at this stage.
Additives are often injected: malt syrup (1–3% for sweetness and color), salt (0.5–1.5%), and vitamin/mineral premixes (post-cooking to avoid thermal degradation). At discharge, moisture is 28–32%, and corn kernels are soft but still discrete.
4. Drying (First Drying Stage)
Exiting the cooker, corn kernels are too wet for flaking. They pass through a drying conveyor (vibrating fluid bed or belt dryer). Air conditions:
- Temperature: 100–120°C inlet, 50–60°C outlet
- Air velocity: 1.5–2.5 m/s through bed
- Residence time: 10–20 minutes
Moisture is reduced from 32% to 18–22%. This partial drying creates a leathery, non-sticky kernel surface. Over-drying (<16% moisture) causes kernel fracturing during flaking; under-drying (>24%) leads to doughy, fused flakes.
5. Tempering (Post-Cooking)
After drying, kernels rest in tempering silos for 4–12 hours at 35–45°C. This step is often underestimated. Moisture gradients within the kernel equalize – the outer layers (dried to 18%) re-hydrate slightly from the still-moist center (25–28%). Final uniform moisture reaches 20–22% throughout. Without tempering, flaking produces “snowflakes” – fine powder instead of intact flakes.
6. Flaking (Forming)
Tempered kernels are flaked using paired counter-rotating rolls (diameter 600–800 mm, width 1–2 m). Roll gap is adjustable from 0.1 to 1.0 mm. Parameters:
- Roll speed: 200–400 rpm (usually differential: one roll 5–10% faster to shear)
- Roll temperature: cooled to 30–40°C by internal water circulation
- Feed rate: 3–6 metric tons per hour per meter of roll width
Each kernel passes through the gap once. The gelatinized starch behaves as a thermoplastic – it flows plastically. The flake thickness should be 0.3–0.5 mm. Thicker flakes chew hard and don’t toast evenly; thinner flakes break in downstream sifting.
Critical failure: If kernel moisture is too high (>23%), flake sticks to rolls and forms a continuous sheet. If too low (<18%), kernel shatters.
7. Sifting and Size Grading
Flaked corn passes over a vibrating sifter with two or three decks:
- Top deck (10–12 mm round holes) removes unfaked kernels (“buttons”)
- Middle deck (6–8 mm) retains target flakes
- Bottom deck (<4 mm) collects “fines” (broken flakes)
Target flakes (size 6–12 mm) move to toasting. Buttons are recycled to tempering (after crushing). Fines are sold as animal feed or reprocessed into extrusion-based cereals. A well-balanced line has <5% buttons and <8% fines.
8. Toasting (Second Critical Control Point)
This step creates the characteristic corn flake color, flavor, and crispness. Toasting uses a rotary drum toaster or fluid bed toaster with multi-zone temperature control.
8.1 Toasting Mechanism
Three simultaneous processes occur:
- Maillard reaction: Reducing sugars (glucose, maltose) react with amino acids (mainly lysine and asparagine) at 130–170°C. This produces hundreds of volatile compounds – pyrazines (nutty), furans (caramel), and aldehydes (toasty).
- Starch dextrinization: Starch chains break into shorter dextrins, increasing solubility and crunch.
- Moisture removal: Flake moisture drops from 20% to 2–4% . This makes the flake glassy and brittle.
8.2 Toaster Profile
A three-zone toaster (30–40 minutes total):
| Zone | Temperature | Time | Moisture Out |
|---|---|---|---|
| 1 (drying) | 110–130°C | 10–12 min | 12–14% |
| 2 (reaction) | 140–160°C | 12–15 min | 6–8% |
| 3 (finishing) | 120–140°C | 8–10 min | 2–4% |
Air flow is critical – too little causes scorching; too much strips volatile flavors. Typical air-to-flake ratio: 3:1 by mass.
8.3 Color Measurement
Toasted flakes are monitored by colorimeters (Lab* scale). Target L value (lightness) = 65–70; a value (redness) = 8–12; b (yellowness) = 25–30. Visual color should be uniform golden brown. Dark spots indicate hot spots or sugar accumulation.
9. Coating (Optional but Common)
After toasting, many corn flakes receive a liquid coating while hot (80–100°C). This is done in a rotary drum coater or enrobing conveyor. Typical coatings:
- Sugar solution (30–50% sucrose): For frosted flakes. Applied at 20–30% of flake weight, then dried.
- Vitamin slurry: Fat-soluble vitamins (A, D, E) in vegetable oil, plus B-vitamins in water. Applied at 2–5% pickup.
- Flavor oil: Cinnamon, honey, chocolate (≤1%).
- Salt solution: For savory variants.
Coating is followed by a short drying tunnel (80°C, 5–10 minutes) to remove surface moisture. Over-coating leads to clumping; under-coating gives uneven taste.
10. Cooling
Hot flakes (90°C from toaster) must be cooled below 35°C before packaging to prevent moisture migration (which causes sogginess) and to allow safe handling. Cooling uses a counter-flow air conveyor or fluid bed cooler with ambient air (20–25°C, 50–60% RH). Residence time: 5–10 minutes. Final flake temperature: 25–30°C.
Important: Cooling rate should not exceed 10°C per minute, else thermal shock cracks flakes.
11. Sifting and Metal Detection
A final sifting step removes fines generated during toasting and coating (typically 2–5% of throughput). Then flakes pass through a high-sensitivity metal detector (ferrous ≥0.5 mm, non-ferrous ≥1.0 mm, stainless ≥1.5 mm). Rejection systems automatically divert contaminated product. This is a legal requirement in most markets (FDA, EU, Codex).
12. Packaging
Flakes are gravity-fed into vertical form-fill-seal (VFFS) machines at speeds of 50–120 bags per minute. Key considerations:
- Gas flushing: Most corn flakes are nitrogen-flushed (residual O₂ <2%) to prevent oxidative rancidity. Oxygen absorbers are rarely used due to bag flexibility.
- Bag material: Multi-layer laminate (paper/polyethylene or PET/metallocene-PE) with moisture barrier <0.5 g/m²/day and oxygen barrier <50 cm³/m²/day.
- Shelf life: 12–18 months when stored below 25°C and 60% RH.
Seal integrity is checked online via vacuum decay or torque testing. Weak seals cause staling within weeks.
13. Quality Control Throughout Process
A modern corn flake line includes inline and offline tests:
| Step | Parameter | Method | Target |
|---|---|---|---|
| Cooking | Gelatinization | Rapid Visco Analyzer (RVA) | Peak viscosity 200–300 RVU |
| Flaking | Thickness | Laser micrometer | 0.4±0.05 mm |
| Toasting | Moisture | NIR (near-infrared) | 3±1% |
| Toasting | Color | HunterLab | L=68±3, a=10±2, b=28±3 |
| Packaging | Water activity (aw) | Dew point meter | <0.35 |
Microbiological testing: Aerobic plate count <10,000 CFU/g; yeast/mold <100 CFU/g; no Salmonella or E. coli O157:H7.
14. Common Defects and Troubleshooting
Even with automation, defects occur:
| Defect | Likely Cause | Correction |
|---|---|---|
| “White eyes” (hard uncooked spots) | Insufficient tempering or cooking time | Increase tempering to 2 hr or cooking to 90 min |
| Fused flakes | High moisture at flaking | Increase drying before tempering |
| Powder fines >15% | Kernel moisture too low at flaking | Raise tempering moisture to 22% |
| Soggy in milk | Over-toasting or low coating sugar | Reduce toasting temperature by 10°C |
| Rancid odor (after 3 months) | High residual O₂ in bag | Reduce to <1% O₂; check seal |
| Uneven browning | Sugar maldistribution in coating | Clean coating nozzles; check sugar solubility |
15. Plant Efficiency and Sustainability
Modern lines achieve 85–92% overall equipment effectiveness (OEE). Energy consumption averages 800–1,200 kJ per kg of finished flake – most consumed in drying (40%) and toasting (35%). Waste streams include:
- Corn cleaning debris (sold as animal bedding)
- Buttons and fines (animal feed, 10–15% of dry mass)
- Packaging scrap (recycled where possible)
Water usage: 1.5–2.5 L water per kg flake, mostly for cleaning and tempering. Closed-loop cooling towers reduce consumption by 50%.
16. Comparison with Alternative Processing
Two other methods exist but are less common for corn flakes:

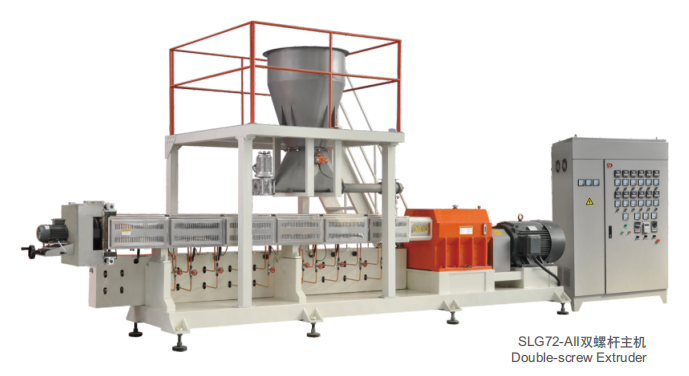

- Extrusion cooking: High-shear, low-moisture (18–22%). Produces “instant flakes” but with less delicate texture. Used for multigrain or gluten-free cereals.
- Batch cooking (kettle): Still used by small artisan producers. Cooking time 2–3 hours at 100°C (atmospheric). Flakes are chewier and darker.
For mainstream corn flakes, the pressure cooking + roll flaking process described above remains dominant because it yields the light, crisp texture consumers expect.
17. Regulatory Compliance (Brief Overview)
In the US, corn flakes are regulated under 21 CFR 170 (food additives) and 21 CFR 110 (current good manufacturing practices). Fortified flakes must meet FDA standards of identity (e.g., 21 CFR 184 for thiamine, riboflavin, niacin, iron). European flake producers follow EC 1169/2011 for labeling and EFSA guidance for health claims (e.g., “source of iron”).
18. Future Trends
Current research focuses on:
- Reduced sugar coatings using allulose or stevia glycosides (requires different Maillard kinetics)
- High-protein corn flakes using maize with 15% protein (requires adjusted cooking to avoid hardness)
- Upcycled flakes using brewers’ spent corn (from distillers) – currently pilot scale
- Energy reduction via microwave-assisted toasting (30% less energy than gas-fired rotary drums)
Conclusion
Producing a simple bowl of corn flakes involves at least 12 distinct unit operations, each requiring tight control of moisture, temperature, and time. The key steps – tempering, pressure cooking, controlled drying, roll flaking, and staged toasting – collectively determine whether the final product shatters with a crisp bite or disappoints as a soggy, hard, or burned mess. While the technology is mature (>100 years old), continuous improvements in sensors, automation, and sustainability keep corn flakes relevant in a competitive breakfast market.
